AFFORDABLE TPMS DIAGNOSTIC TOOL
MaxiTPMS TS401 is a new generation TPMS diagnostic & service tool which features unparalleled sensor coverage and incredibly easy-to-use interface.
This ergonomic tool provides you easy and quick access to the faulty TPMS sensor to help you increase customer satisfaction and boost your bottom line.
Performing a basic sensor activation or advanced sensor programming is easy as following the program options and on-screen display instructions. The TS401 provides sensor data, code definitions and visual / audio responses to make the operations much easier and more convenient to complete. Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!
The latest TS401 software can now program and relearn Autel MX-Sensors, making this tool an industry leader for value performance. Download and update your TPMS service tool to provide the quickest access to the faulty sensors to help you increase customer satisfaction and boost your bottom line.
| Display | Backlit, 128 x 64 pixel display with contrast adjustment |
| Power | 3.7 V Li-polymer battery; 1820 mAh |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D) | 195.5 mm (7.7") x 104 mm (4.09") x 37.5 mm (1.48") |
| Weight | 0.37 kg (0.82 lb.) |
| Warranty | 1 year |
| Software Update | Free |
| Comparison | TS608 | MS906 TS | TS601 | TS508 | TS501 | TS408 | TS401 | TPMS PAD | |
|---|---|---|---|---|---|---|---|---|---|
| TPMS function | |||||||||
| Quick Mode & Advance Mode |
 |
||||||||
| Activate TPMS sensors |
|
|
|
|
|
|
|
|
|
| Read sensor data |
|
|
|
|
|
|
|
|
|
| TPMS diagnose, one step for complete TPMS health check |
|
|
|
|
|
||||
| Read/clear TPMS DTCs; on-screen DTC description |
|
|
|
|
|
||||
| Scan TPMS sensor ID and copy ID into MX-Sensor |
|
|
|
|
|
|
|
|
|
| Program MX-Sensor by auto creating sensor ID |
|
|
|
|
|
|
|
|
|
| Read Sensor ID by OBD and copy ID into MX-Sensor |
|
|
|
|
|
||||
| Relearn by OBD function |
|
|
|
|
|
||||
| Relearn procedure guide on the tool |
|
|
|
|
|
|
|
||
| Check Key FOB |
|
|
|
|
|
|
|||
| Read TPMS live data |
|
|
|
||||||
| Tire Type/Pressure selection |
|
|
|
|
|||||
| Other TPMS special functions |
|
|
|
||||||
| TPMS Toolkit (other function) |
|
||||||||
| Diagnostic function | |||||||||
| Basic OBDII code reader |
|
|
|
||||||
| Read/clear codes for all electronic systems |
|
|
|||||||
| Support all 10 test modes of the latest J1979 OBDII test specs |
|
|
|
||||||
| Enhanced OBDII Mode 6 |
|
|
|
||||||
| Display live data in text, graph & analog for easy data review |
|
|
|||||||
| Relearn parking brake pad after replacement; |
|
|
|||||||
| Reset Steering Angle Sensor (SAS); |
|
|
|||||||
| Reset service mileage and service intervals; |
|
|
|||||||
| Forced regeneration and adjusting injectors; |
|
|
|||||||
| Support battery registration and reset |
|
|
|||||||
| Support IMMO functions |
|
|
|||||||
| Complete diagnostic function |
|
||||||||
| Tool features | |||||||||
| Built-in rechargeable li-ion battery |
|
|
|
|
|
|
|
||
| Strong housing with protective rubber boot |
|
|
|
|
|
|
|
||
| Print TPMS sensor data via PC |
|
|
|
|
|
|
|
|
|
| Internet updatable | WIFI | WIFI | SD card | USB | SD card | USB | USB | USB | |
| Multilingual support |
|
|
|
|
|
|
|
|
|
| Historical test records |
|
|
|
|
|
|
|
||
| Software Update | 1 year free | 1 year free | free | free | free | free | free | free | |
| Limited one year warranty |
|
|
|
|
|
|
|
|

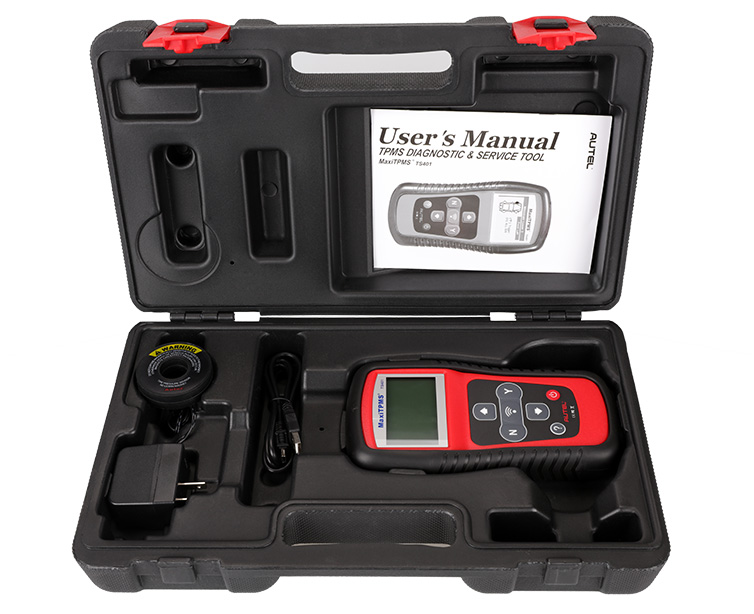

User manual
USB cable
Carry case
Power adapter
