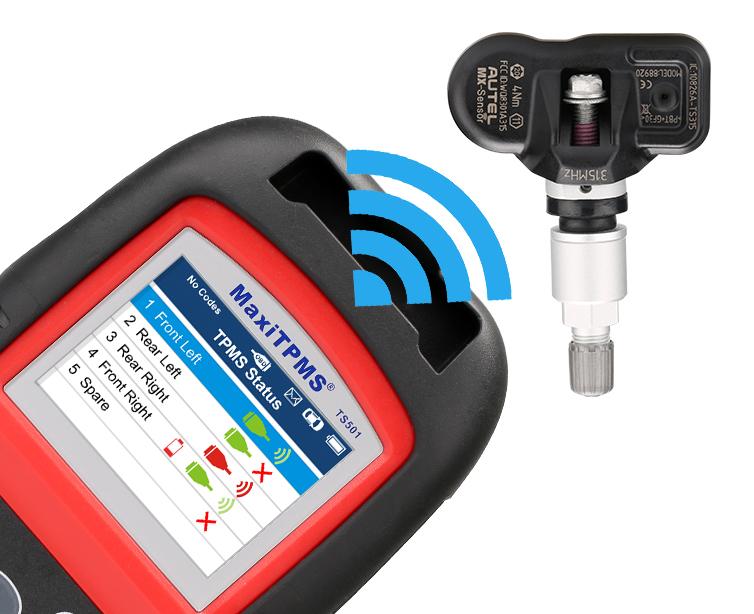

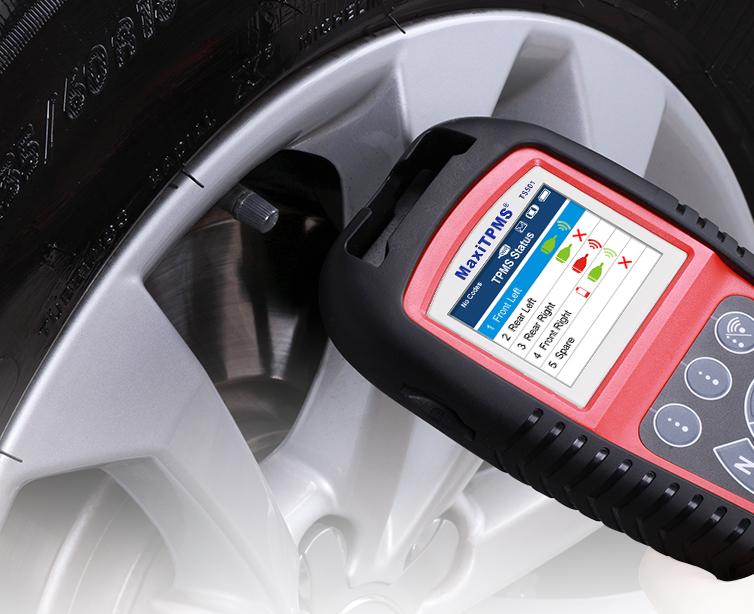

The single screen organization allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features, compare sensor and ECU data, then instantly pinpoint system faults to identify the fix. This At-A-Glance view of all sensor information easily shows the location of which sensor battery is low and needs to be replaced soon.
Performing a basic sensor activation or complex diagnostic tool functions, is easy as following the program options and on-screen display instructions. The TS501 provides code definitions and visual / audio responses to make the operations much easier and more convenient to complete.
Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!

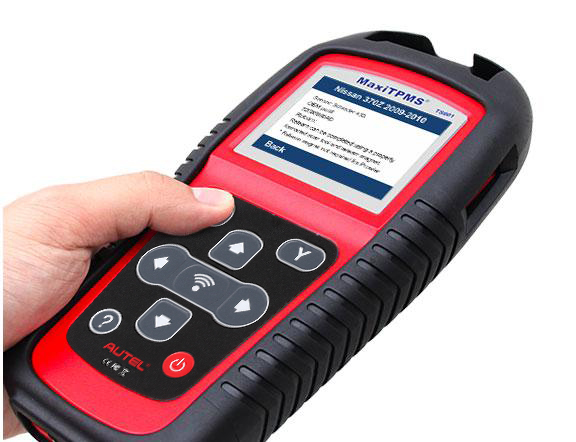

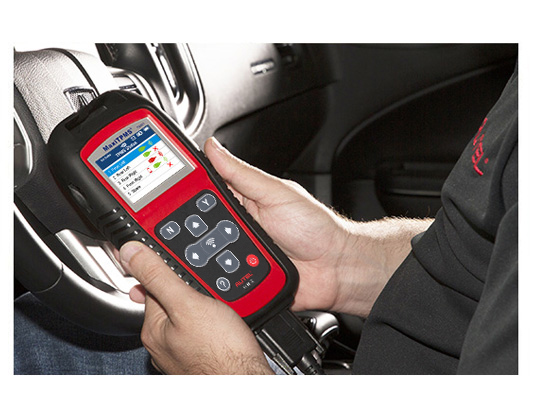

The TS501 can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, or auto create ID with no sensor re-learn required for sensor positioning.
Display | TFT color display (320 x 240 dpi) |
Power | 3.7 V Li-polymer battery; 2400mAh |
Operating Temperature | 0 to 50°C (32 to 122°F) |
Storage Temperature | -20 to 70°C (-4 to 158°F) |
Dimensions (W x H x D) | 202.2 mm (7.96") x 106.7 mm (4.20") x 37.7 mm (1.48") |
Connectivity | Mini USB 2.0*1 |
Weight | 0.4 kg (0.88 lb.) |
Warranty | 1 year |
Software Update | Free |
Comparison | TS608 | MS906 TS | TS601 | TS508 | TS501 | TS408 | TS401 | TPMS PAD | |
---|---|---|---|---|---|---|---|---|---|
TPMS function | |||||||||
Quick Mode & Advance Mode | |||||||||
Activate TPMS sensors | |||||||||
Read sensor data | |||||||||
TPMS diagnose, one step for complete TPMS health check | |||||||||
Read/clear TPMS DTCs; on-screen DTC description | |||||||||
Scan TPMS sensor ID and copy ID into MX-Sensor | |||||||||
Program MX-Sensor by auto creating sensor ID | |||||||||
Read Sensor ID by OBD and copy ID into MX-Sensor | |||||||||
Relearn by OBD function | |||||||||
Relearn procedure guide on the tool | |||||||||
Check Key FOB | |||||||||
Read TPMS live data | |||||||||
Tire Type/Pressure selection | |||||||||
Other TPMS special functions | |||||||||
TPMS Toolkit (other function) | |||||||||
Diagnostic function | |||||||||
Basic OBDII code reader | |||||||||
Read/clear codes for all electronic systems | |||||||||
Support all 10 test modes of the latest J1979 OBDII test specs | |||||||||
Enhanced OBDII Mode 6 | |||||||||
Display live data in text, graph & analog for easy data review | |||||||||
Relearn parking brake pad after replacement; | |||||||||
Reset Steering Angle Sensor (SAS); | |||||||||
Reset service mileage and service intervals; | |||||||||
Forced regeneration and adjusting injectors; | |||||||||
Support battery registration and reset | |||||||||
Support IMMO functions | |||||||||
Complete diagnostic function | |||||||||
Tool features | |||||||||
Built-in rechargeable li-ion battery | |||||||||
Strong housing with protective rubber boot | |||||||||
Print TPMS sensor data via PC | |||||||||
Internet updatable | WIFI | WIFI | SD card | USB | SD card | USB | USB | USB | |
Multilingual support | |||||||||
Historical test records | |||||||||
Software Update | 1 year free | 1 year free | free | free | free | free | free | free | |
Limited one year warranty |
TPMS_Feedback_Form.pdf
MaxiPCSuite_V1.33.zip
MaxiPCSuite_mac_V1.12.zip
TS501_Update Instruction_V1.pdf
Print Function Operating Guide-TS501.pdf
TS501_V6.40_FunctionList_AU.pdf
TS501_V6.40_FunctionList_EU.pdf
TS501_V6.40_FunctionList_JP.pdf
TS501_V6.40_FunctionList_KR.pdf
TS501_V6.40_FunctionList_US.pdf
MaxiTPMS TS501_User Manual_US.pdf

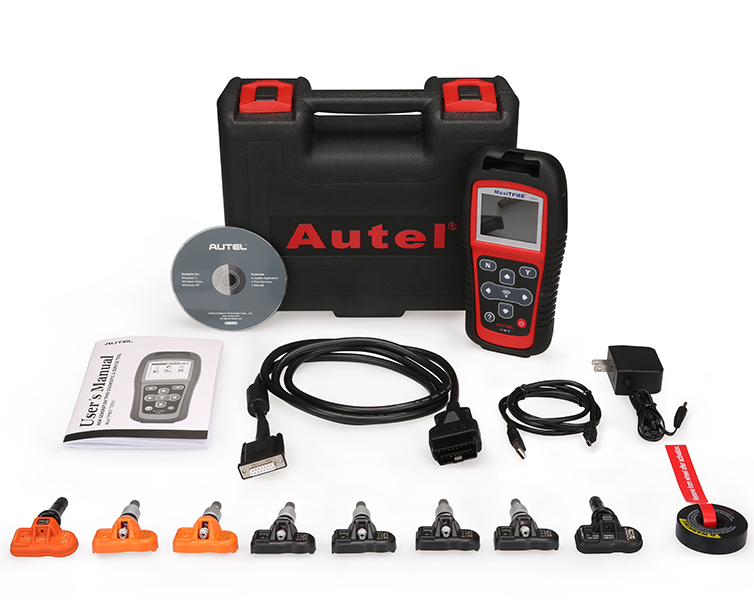

User manual
OBD II cable
USB cable

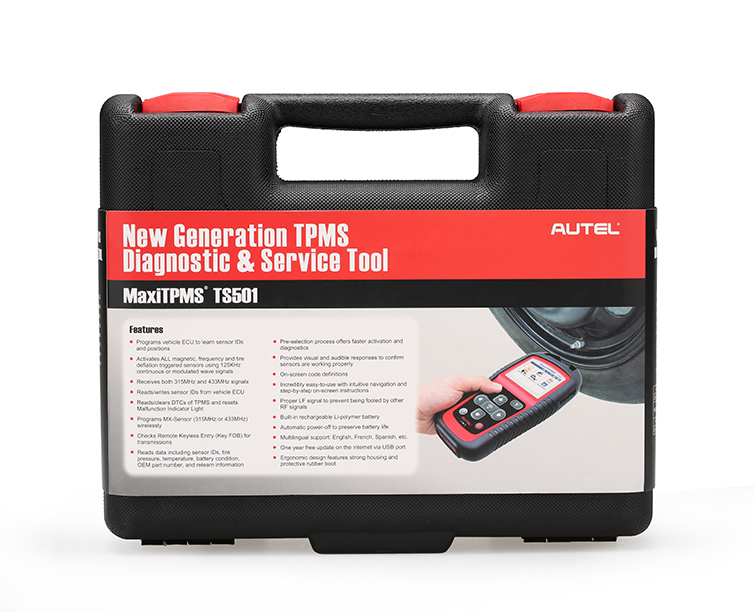

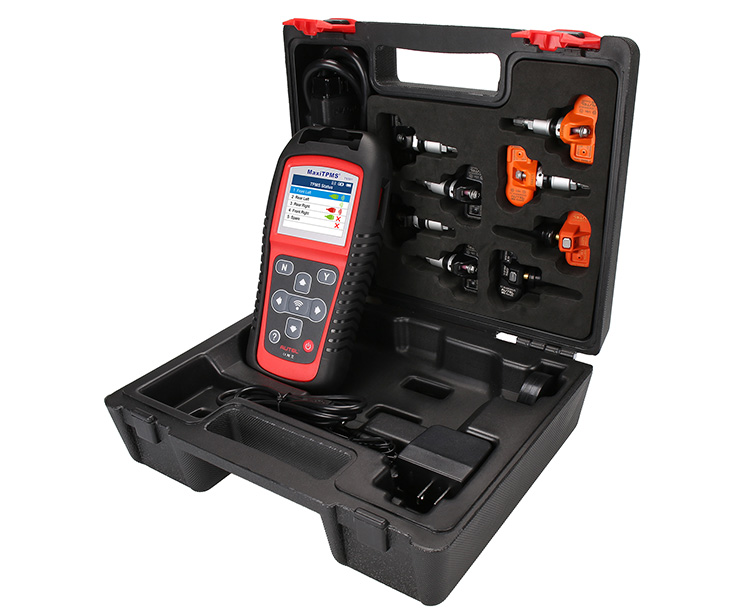

Carry case
Power adapter
SD card
